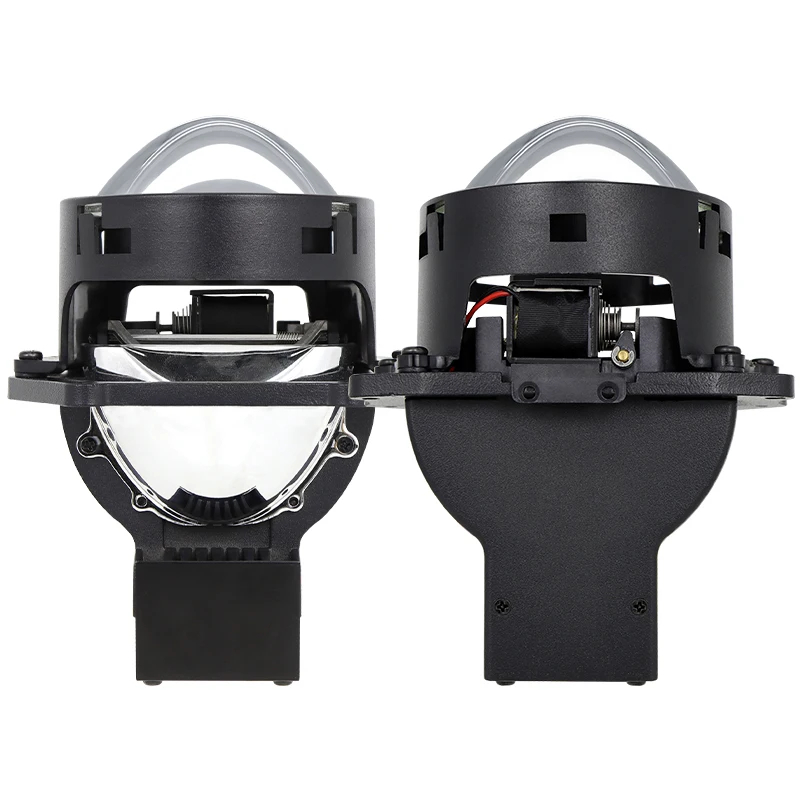

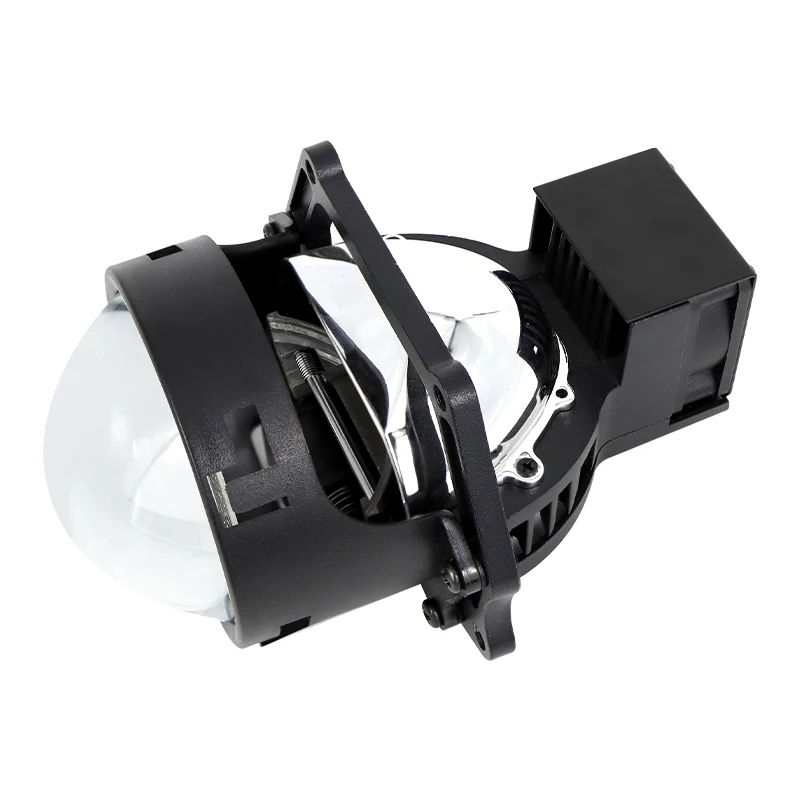

A9 3 inch lens Laser Bi-LED Projector

Add to quote
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Category:
Tags:

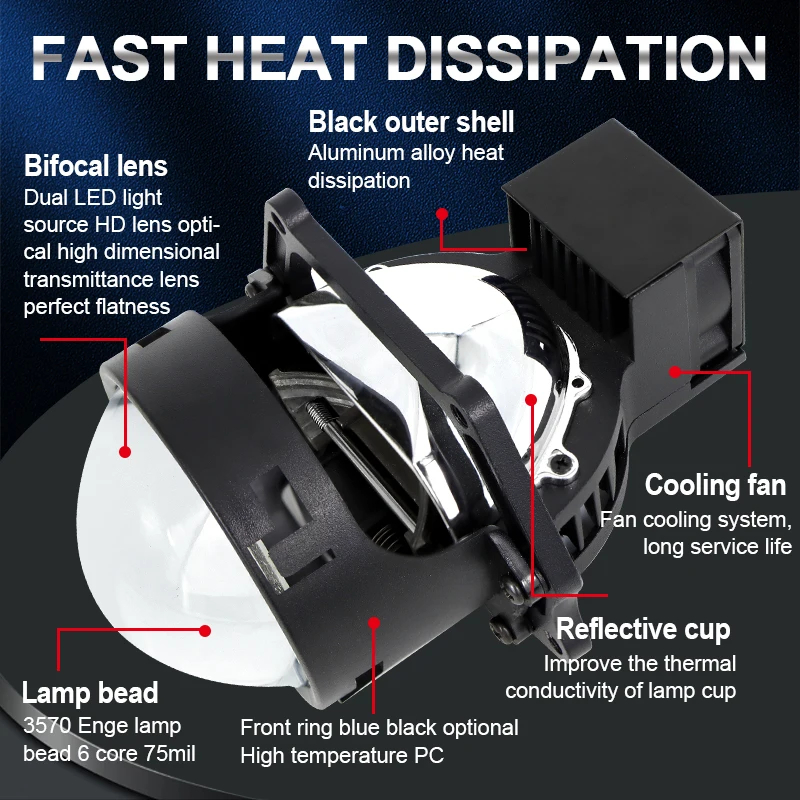

Description

Model No. A9-01 3 inch 3 lights A9-02 3 inch 3 lights
Driving Style Left or Right hand drive Left or Right hand drive
LED chip： Osram 6 core Osram 6 core
Power Low Beam : 55W 55W
Power high Beam : 75W 75W
Low Beam Lumens: 3200LM±200 3200LM±200
High Beam Lumens： 1500LM±100 1500LM±100
The third light beam lumens 1500LM±100 1500LM±100
The third light shape Circle Square
9M test distance Low Beam 900LX±100 Low Beam 900LX±100
9M test distance High Beam: 2000LX±100 High Beam: 2000LX±100
Lighting Width 90 degrees left -ight 90 degrees left -ight
 35 degrees up- down  35 degrees up- down

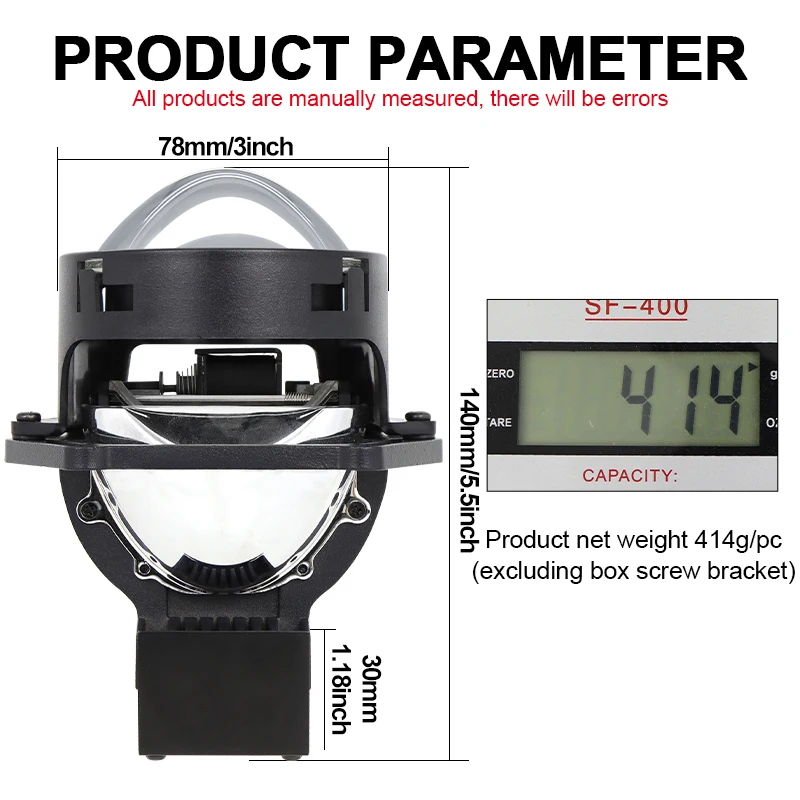

Product Size： 155*105*76mm±1mm 155*105*76mm±1mm
Lens Size: 3 inch 3 inch
Voltage： 9-16V 9-16V
Body material: aluminum alloy aluminum alloy
Color and temperature 6000K±500 6000K±500
Front ring color: can choose white or blue can choose white or blue
with Fan Cooling : double bearing ball fan double bearing ball fan
Lens material: glass glass
Driver built-in built-in

Wire: Red wire to Low Beam+, Black wire to Low beam -,Yellow wire to High Beam-
