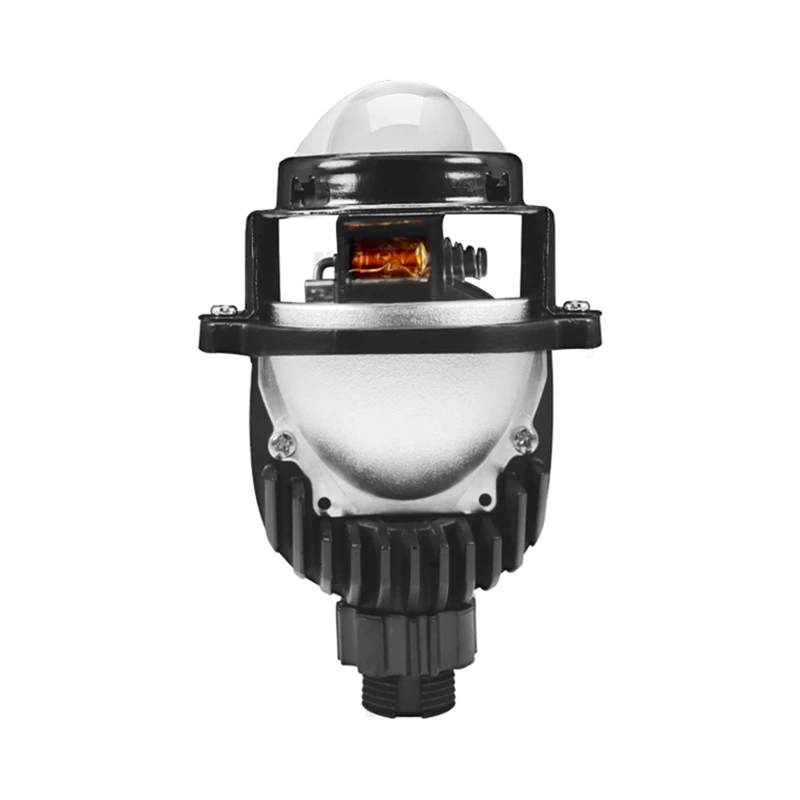

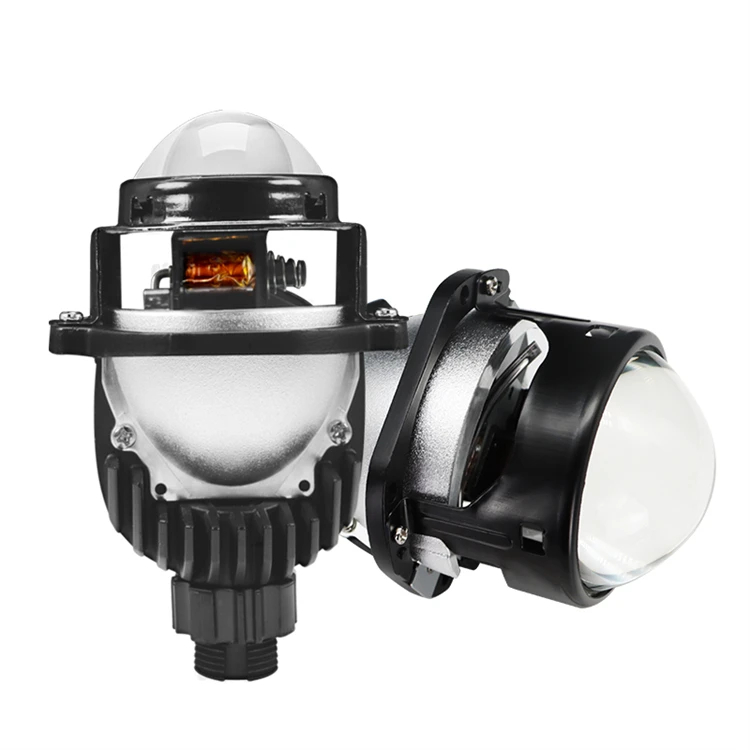

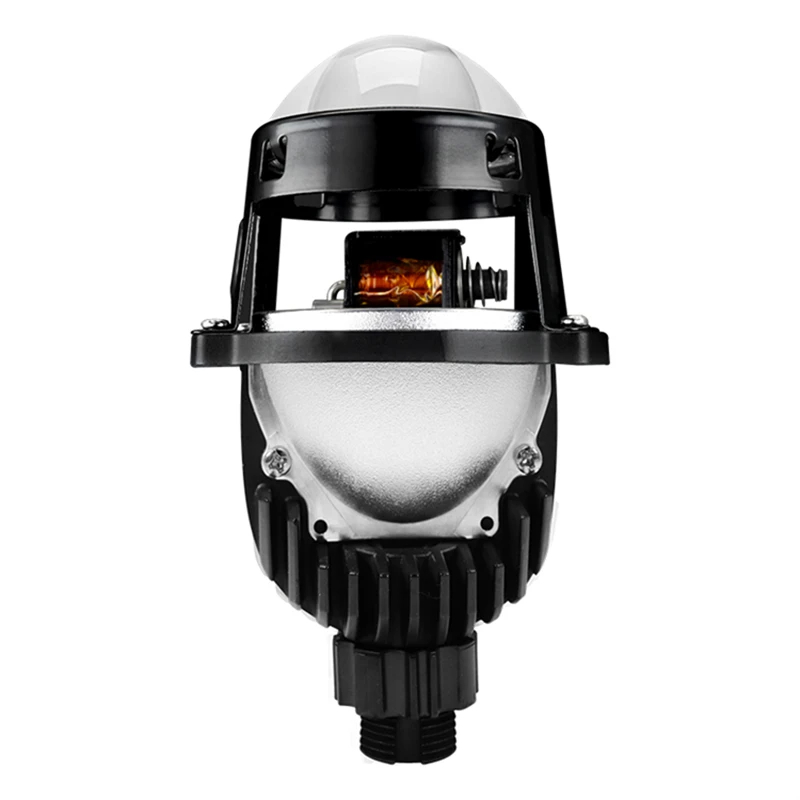

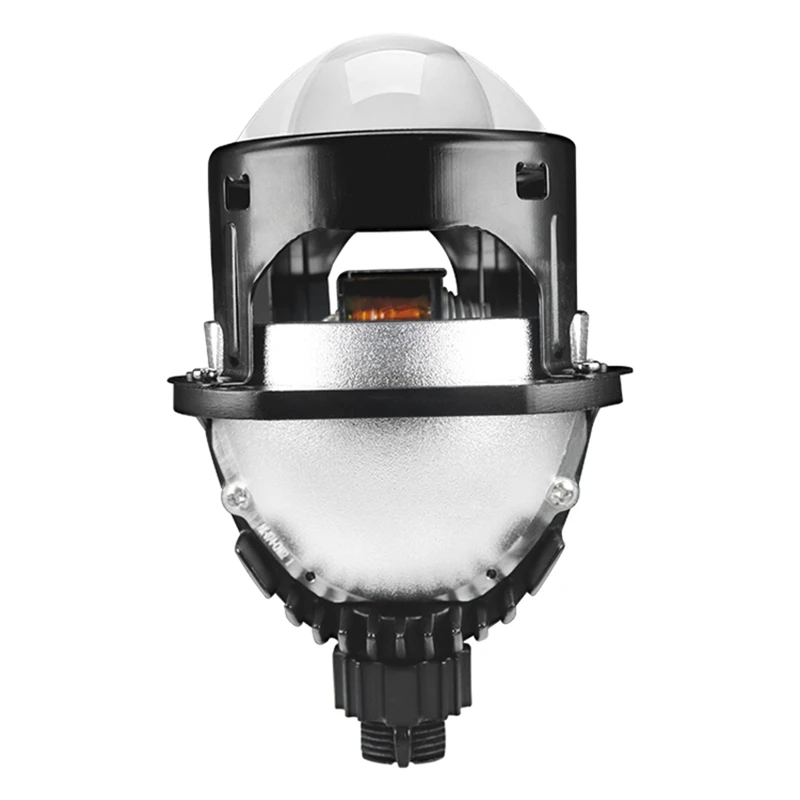

1.8 Inch 2 Inch 2.5 Inch Bi LED headlight Projector Lens

Add to quote
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Category:
Tags:

Description

Model No. A6-01 1.8 inch A6-02  2 inch A6-03  2.5 inch
Driving Type Left-hand drive Left-hand drive Left-hand drive

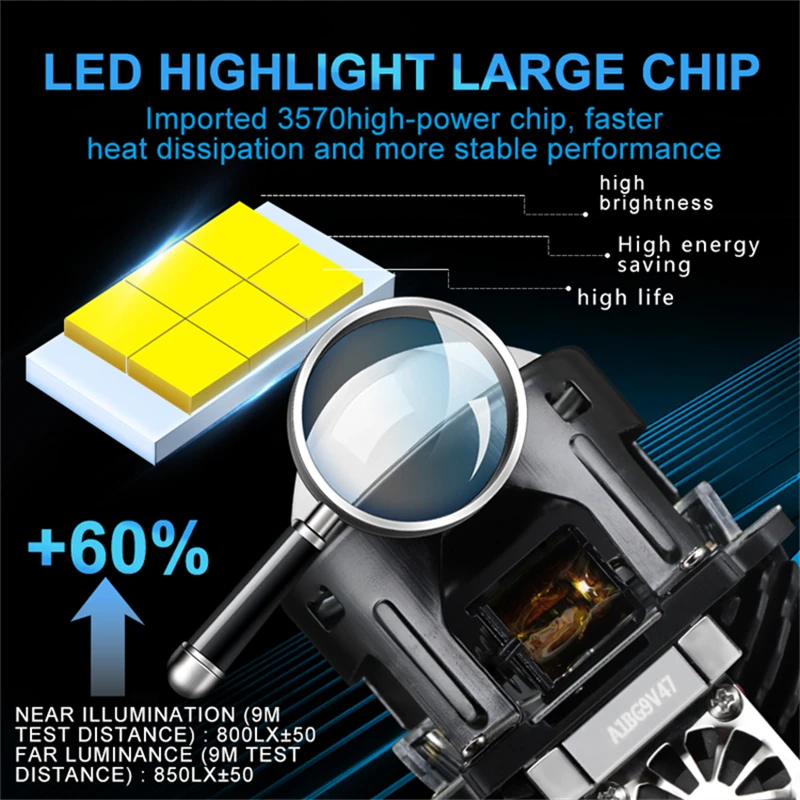

LED chip： Taiwan Bead 6 Chip-3570 Taiwan Bead 6 Chip-3570 Taiwan Bead 6 Chip-3570
Power Low Beam : 30W/pcs 30W/pcs 30W/pcs
Power high Beam : 38W/pcs 38W/pcs 38W/pcs
Low Beam Lumens: 3200LM±100 3200LM±100 3200LM±100
High Beam Lumens： / / /

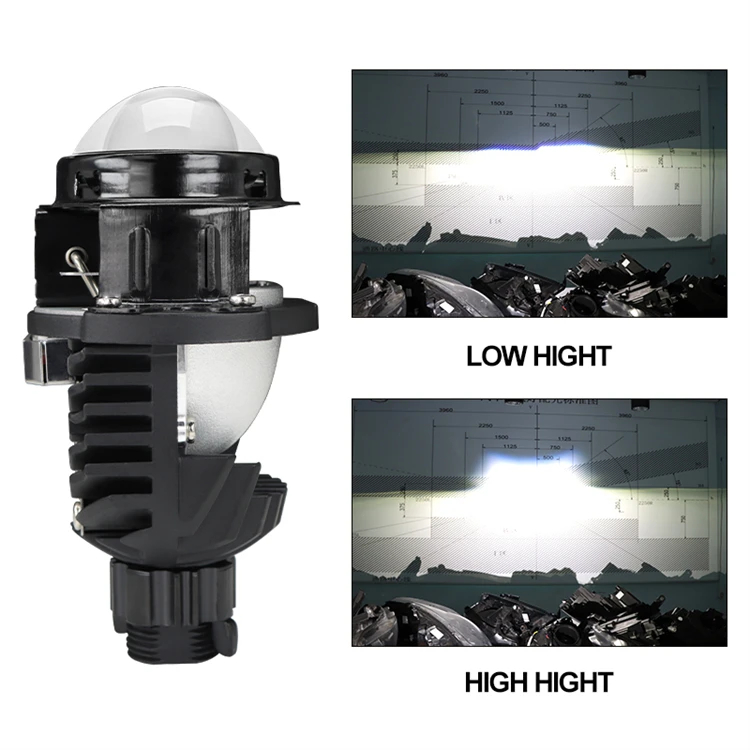

9M test distance 800LX±50 700LX±50 500LX±50
9M test distance 850LX±50 750LX±50 550LX±50
Lighting Width 70 degrees left -ight 60 degrees left -ight 70 degrees left -ight
 25 degrees up- down  25 degrees up- down  25 degrees up- down
Product Size： 121*76*60mm±1mm 130*76*60mm±1mm 140*84*73mm±1mm
Lens Size: 1.8 inch 2 inch 2.5 inch
Voltage： 9-16V 9-16V 9-16V
Body material: aluminum alloy aluminum alloy aluminum alloy
Color and temperature 6000K±500 6000K±500 6000K±500
Lamp cup material ： high temperature resistance PC high temperature resistance PC high temperature resistance PC
Front ring color: can choose white or blue can choose white or blue can choose white or blue

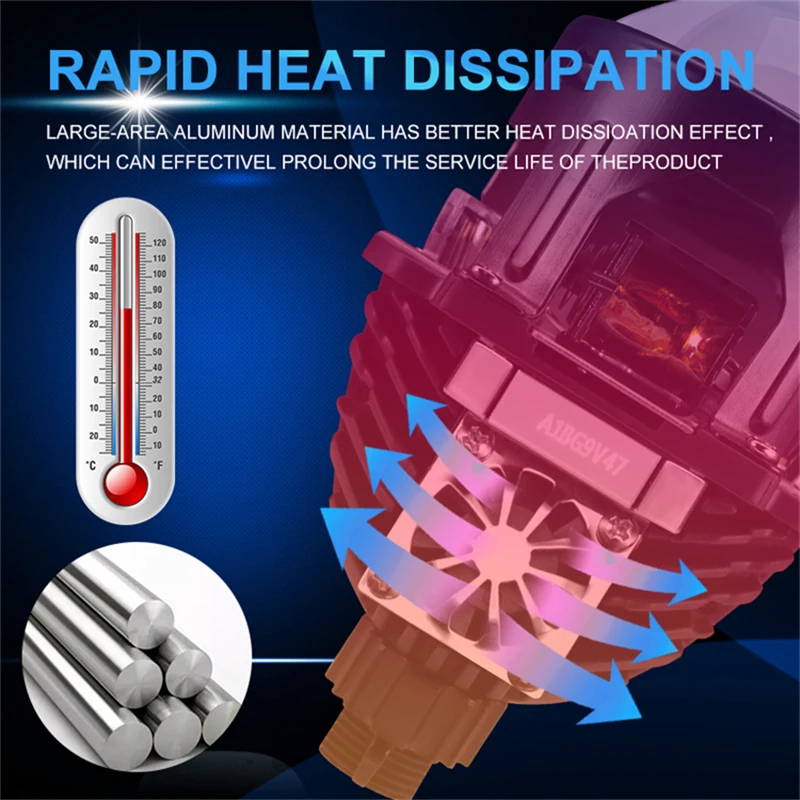

with Fan Cooling : double bearing ball fan double bearing ball fan double bearing ball fan
Lens material: glass glass glass
Driver built-in built-in built-in

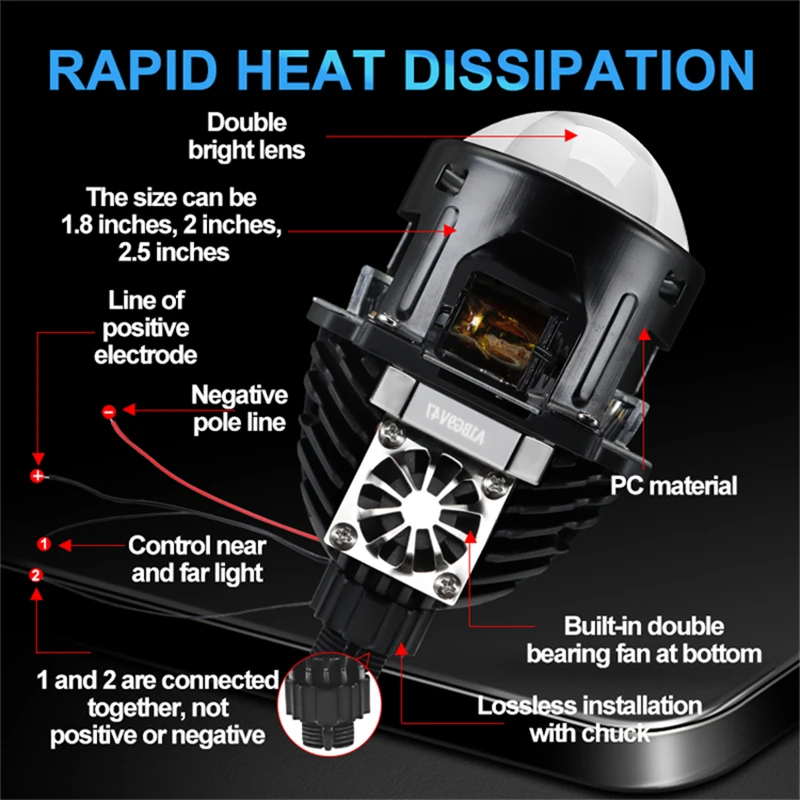

Wire: Red wire to Low Beam+, Black wire to Low beam -,Yellow wire to High Beam-
